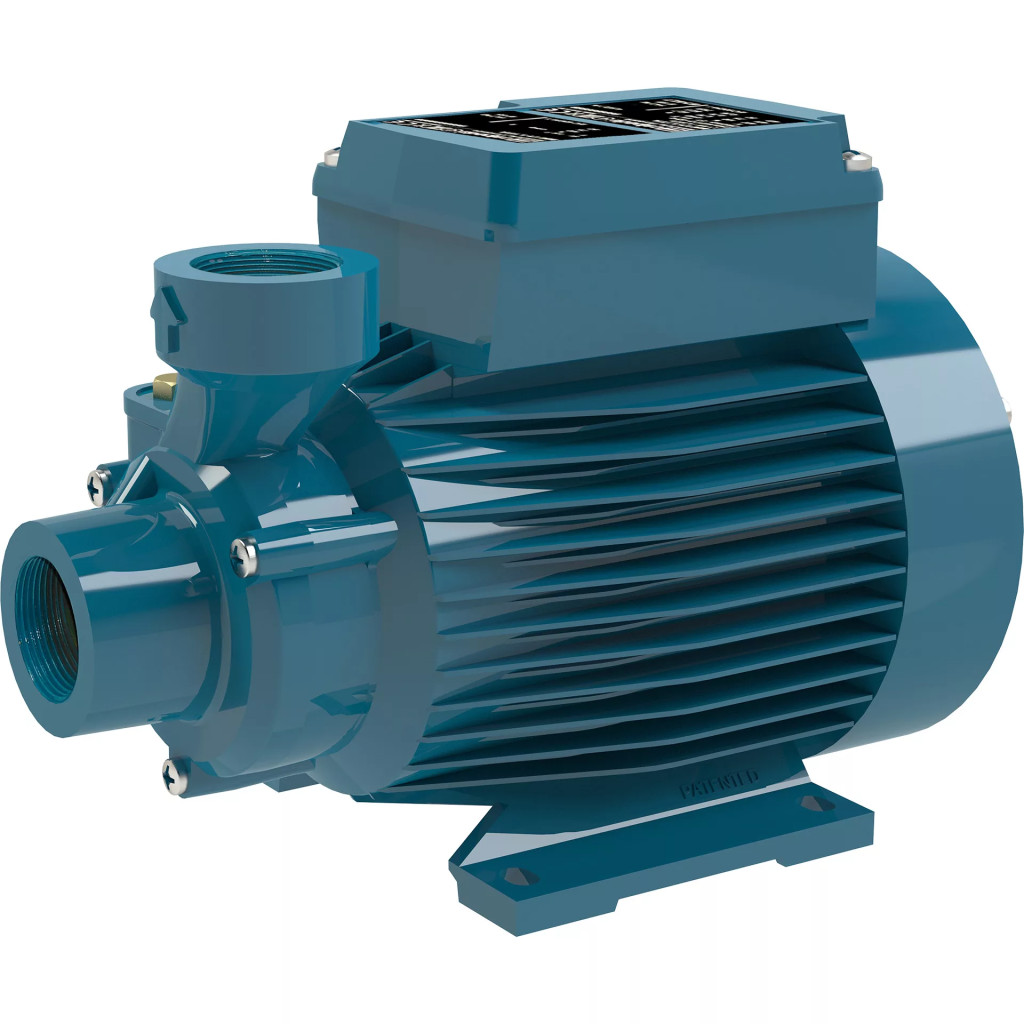

Execution Close-coupled electric pumps with peripheral impeller. Compact, patented construction with motor housing and pump-side wall in one piece. Protected against water entering the motor from the outside. CT: version with cast iron pump housing. B-CT 61: bronze pump casing version. ICT 61: version with stainless steel pump body. Bronze pumps are supplied completely painted.
Applications For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials. – For increasing network pressure (follow local specifications). – For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.
Operating conditions Liquid temperature up to 60 °C. Ambient temperature up to 40 °C. Total suction lift up to 7 m. Maximum permissible working pressure: 6 bar. Continuous duty (S3 60% for three-phase motors).
Execution Peripheral close coupled electropumps T, TP: versi...
